# Color in android a tutorial

## what is Light ?

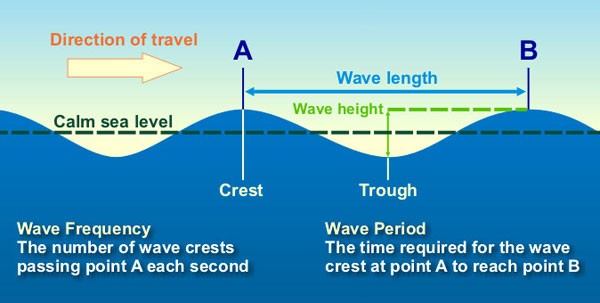

A light is a wave which doesn’t need a medium to propagate . Other examples of waves are water waves , or air waves which need water and air as a medium to propagate .Water , air and sound waves are known as mechanical waves . A wave has the following properties

• it has a crest , which is the largest amplitude that this wave can have
• it has a direction of propagation
• it has a length , which is the distance between any two identical points on a wave , for example the distance between two crests .
• it has a period which is time required for an identical point to repeat itself , so for example the time required for the crest at point A to reach point B .
• a wave has a frequency , the frequency is 1 over the period . The period represents the amount it takes for a crest to repeat itself . the frequency is 1 over this this period , so it is the number of crest that passes through a point in one second.

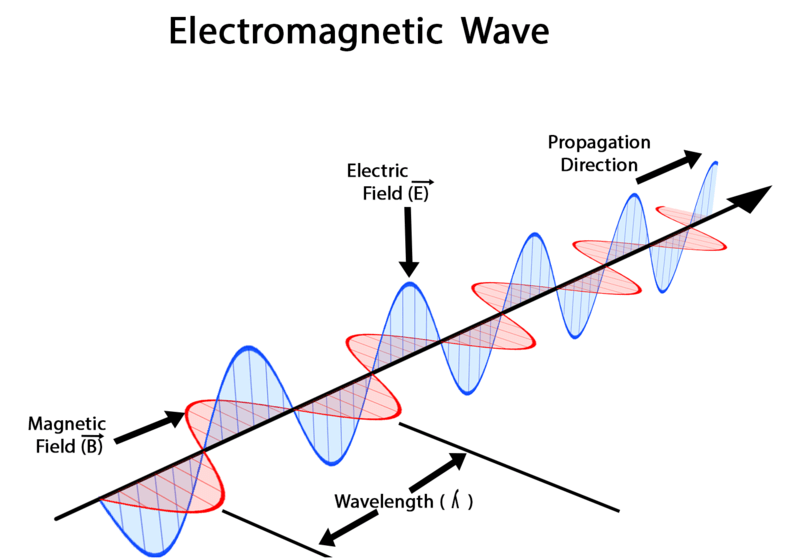

Light is an electro magnetic wave , as such it has an electric field , and a magnetic field .

A magnetic field is for example the field that is generated by a magnet . This field can exert a force on certain materials , and attract them.

An electric field is created by attraction and repulsion of electrical charges . An electric charge is a property of matter that causes object to attract or to repel . An example of an electric field is when a ballon is rubbed on hair , the balloon will be charged negatively , and it will attract the hair .

A charged particle produces an electric field , and exerts a force on other charged particles. Charges that have the same sign attracts , and charges that have opposite signs repels . Positively charged particles accelerate in the same direction of the electrical field , and negatively charged particles accelerate in the inverse direction of the electric field .

A magnetic field is produced by moving charged particle , it exerts a force that is perpendicular to the speed of particles , as such it affects the direction of the particles , and not their speed .

A light wave is formed of charged particles . The particles in a light wave are called photon ,these particles create the wave . A light wave has energy , the energy of light wave is related to its frequency as such it is inversely proportional to its length. The higher the frequency , the shorter the wavelength , the higher the energy that a light wave has . The lower the frequency , the longer the wavelength , and the lower the energy that a light wave has .

The range of frequencies and energies of electro magnetic waves is know as the electromagnetic spectrum .The electro magnetic spectrum is classified in :

• radio waves , have a length that is larger than 1* 10^-1 m
• micro waves have a length between and 1*10^-4 m and 1* 10^-1m
• they are used for micro wave oven , and for radar .
• infrared has a length between 7* 10^-7 m and 1 * 10^-4 m
• warm bodies release infra red wave length . Infra red waves have a length that is below the length of a red wave which is a wave that we can see . Heat cameras and night vision cameras , use infra red waves .
• visible lights has a length between 4 * 10^-7 m and 7 * 10^-7 m . These are waves that we can see . The longest one is the red wave , it has a wavelength of around 700 nm , and the shorted one is the violet it has a wavelength of around 380 nm .
• ultra violet waves has a length between 1*10^-8 m and 4 * 10^-7 m
• ultra violet waves are used for example in treatment of cancer.
• x-rays has a wave length between 1 * 10^-9 m and 1 * 10^-8 m
• x-rays waves can be used to check if a bone is broken
• gamma rays has a wave length that is shorter than 1*10^-9 m
• gamma rays can cause cancer , and they can be used to treat cancer and kill bacteria .

## What is a color

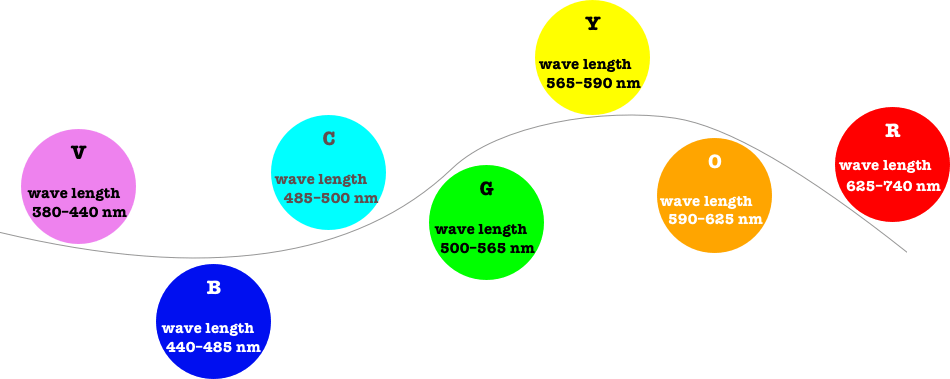

Light is an electro magnetic wave , it has a length . We can classify light based on its wavelength . Visible light has a wavelength between 4 * 10^-7 m and 7 * 10^-7 m . Visible light can be seen by the human eye . The length of the wave specify the color that this wave has . The longest wave length that we can see is the red wave length , and the shortest wave length that we can see is the violet .

When all the visible light waves are seen together , we have the white lite . When light hits an object it is either reflected or absorbed . Our eyes absorb the reflected light waves from the object , and we are able to distinguish the colors of a light wave. The black color is the result of an object absorbing all light , or the absence of light

## What is a color space or model?

we need a way to represent a color in the computer , so we have what is called the color space or model , which is the model by which we are representing a color in the computer , and creating colors in analog and digital devices .

In a color space or a color model , we have some basic colors from which all other colors are created ,

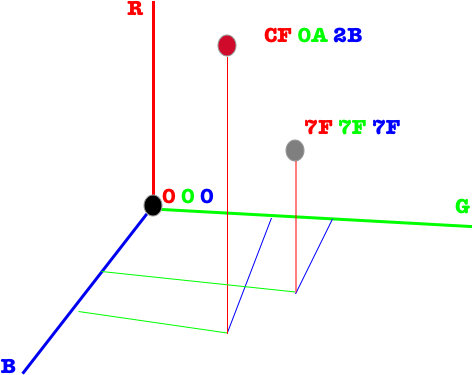

For example , if our basic colors are the red green and blue , then this color space is the red green blue color space , and it has the basic colors : red , green and blue . All other colors are created by combining these colors . So if you want the red green blue colors form the basis of a 3d coordinate system , where other colors are created by combining the value of these colors together .

## Colors in android (32bits , 64bits , Color class)

colors in android are represented through either an int literal or a long literal or as an instance of the `Color` class , which creates a color represented as an int literal or a long literal . The `Color `class also has static methods that allow us to create int and long colors literals , and to convert between the different color space .

The int color literal has 32 bits , and it allow us to create only rgb colors where each components has 8 bits . The long color literal has 64 bits and it allow us to create colors that belong to different color space such as XYZ , RGB. The color long was added as of android O or version 8 , as such it is only available for api level 26 and higher .

## Creating a 32 bits int rgb color in android

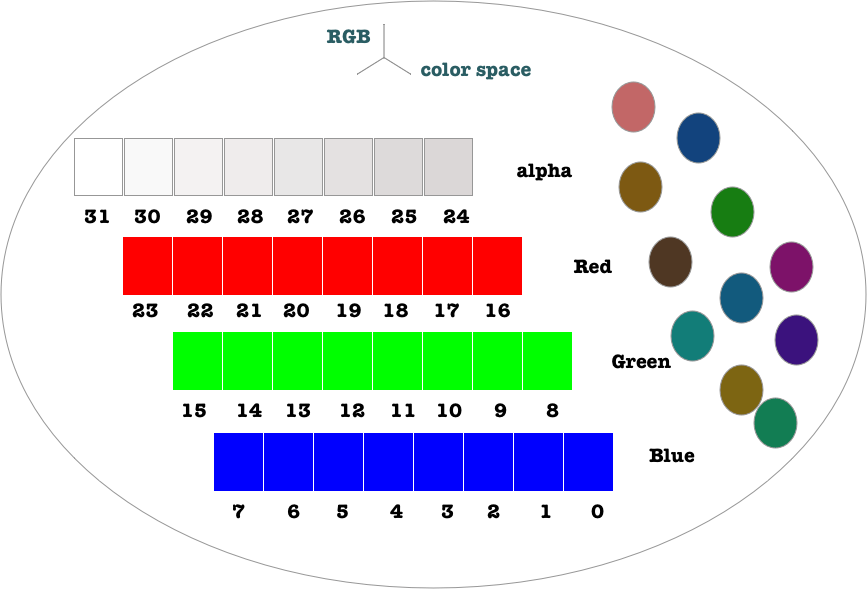

we can create a color in android by using only 32 bits , in this case the color belong to the RGB color space .

• 8 bits are used to represent the alpha.
• alpha is the transparency of the color
• when the value of alpha is at its full , the color is fully opaque
• when the value of alpha is at its lowest , the color is transparent
• 8 bits are used to represent the red color
• 8 bits are used to represent the green color
• 8 bits are used to represent the blue color

each color and alpha channel takes 8 bit of storage , as such it takes a byte. A byte can have a value between 0 and 255 in decimal inclusive , or it can have a value between 0x00 and 0xFF in hexadecimal .

### creating a 32 bits color using an int literal

we can create a color by using an integer literal which is specified in hex , this can be done in code or in xml . The format of the integer literal is

`0xAARRGGBB`

`0x` means that we are using hexadecimal to specify the colors . Two hexadecimal digits for each color and alpha are used

• The first byte or two hex digits specify the alpha opacity , when it is `0xFF` it is fully opaque , when it is `0x00` it is fully transparent .
• The second byte or two hex digits are used to specify the red color
• the third byte or two hex digits are used to specify the green color
• the last byte or two hex digits are used to specify the blue color

#### in code

`public @ColorInt static final int color = 0x00000000;`

when creating color using code , we can declare its type as an `int` , and we must specify the color using a hexadecimal integer literal . The annotation @ColorInt that is used , is optional , and it is just used to annotate that this int is a color .

In this example , we have created an activity called ColorActivity which has a layout called activity_color.xml .

ColorActivity.java

```package com.twiserandom.whatisacolor;

import android.graphics.Color;
import android.os.Build;
import android.support.annotation.ColorInt;
import android.support.annotation.RequiresApi;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;

public class ColorActivity extends AppCompatActivity {

ImageView srgbIv_RED , srgbIv_RED_HALF_ALPHA;
/*
@ColorInt
just used to annotate that this color
not necessary to use
*/
public @ColorInt static final int  RED = 0xFFFF0000;
public @ColorInt static final int  RED_HALF_ALPHA = 0x7FFF0000;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);
srgbIv_RED = (ImageView) findViewById(R.id.srgbIv_RED);
srgbIv_RED_HALF_ALPHA = (ImageView) findViewById(R.id.srgbIv_RED_HALF_ALPHA);
srgbIv_RED.setBackgroundColor(ColorActivity.RED);
srgbIv_RED_HALF_ALPHA.setBackgroundColor(ColorActivity.RED_HALF_ALPHA);

}

}

```

activity_color.xml

```<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:id="@+id/srgbIv_RED"
/>

<ImageView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:id="@+id/srgbIv_RED_HALF_ALPHA"
/>
</LinearLayout>```

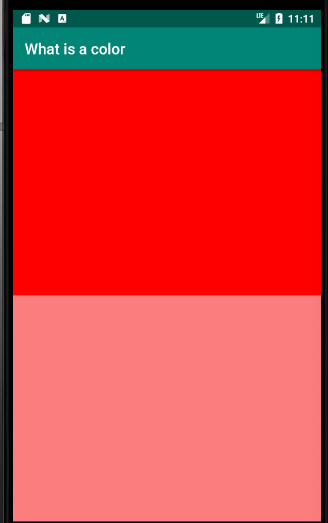

The activity_color.xml contains a linear layout which has two image views . In the ColorActivity , we get the references for the views and we we set the background to the colors that we have defined .

#### in xml

to create a color using xml , we must use the colors.xml file located inside the values folder.

This file contains some predefined colors such as the colorPrimary , colorPrimaryDark , colorAccent .

```<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#008577</color>
<color name="colorPrimaryDark">#00574B</color>
<color name="colorAccent">#D81B60</color>
</resources>```

we can define a new color by using a name and a value in the colors.xml file

```<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#008577</color>
<color name="colorPrimaryDark">#00574B</color>
<color name="colorAccent">#D81B60</color>
<color name="green">#FF00FF00</color>
<color name="green_half_alpha">#7F00FF00</color>
</resources>
```

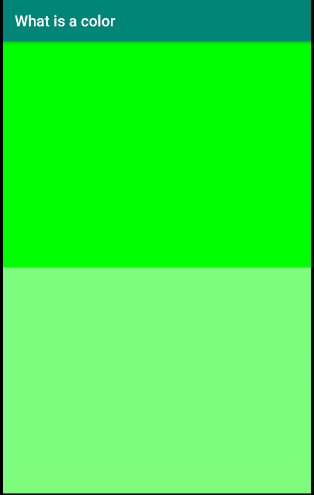

So in this example we have defined a green color , and a green_half_alfa color . Our activity is called ColorActivity.java , which contains the following code

```package com.twiserandom.whatisacolor;

import android.support.v4.content.ContextCompat;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;

public class ColorActivity extends AppCompatActivity {

ImageView srgbIv_GREEN , srgbIv_GREEN_HALF_ALPHA;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);
srgbIv_GREEN = (ImageView) findViewById(R.id.srgbIv_GREEN);
srgbIv_GREEN_HALF_ALPHA = (ImageView) findViewById(R.id.srgbIv_GREEN_HALF_ALPHA);
srgbIv_GREEN.setBackgroundColor(ContextCompat.getColor(this, R.color.green));
srgbIv_GREEN_HALF_ALPHA.setBackgroundColor(ContextCompat.getColor(this, R.color.green_half_alpha));

}

}
```

and it has a layout file called activity_color.xml

```<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:id="@+id/srgbIv_GREEN"
/>

<ImageView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:id="@+id/srgbIv_GREEN_HALF_ALPHA"
/>
</LinearLayout>```

in the ColorActivity class we get the reference to the image views , and we set their background color to the color that we have defined. We use the ContextCompat.getColor method , passing to it the context of our activity which is the `this` keyword , and the name of the color by using `R.color.colorname` .

### create a 32 bits int color using the Color class static methods

```/*
create a color by specifying the components
alpha , red , green , blue
*/
public static int argb( int alpha, int red, int green, int blue)
public static int argb(float alpha, float red, float green, float blue)

/*
create a color by specifying the components
red , green , blue
the alpha component is by default 255 or 1
*/
public static int rgb( int alpha, int red, int green, int blue)
public static int rgb(float red, float green, float blue)
```

we can create a 32 bits int color by using the argb method , where we specify the color component as either a float or an int . The int value can be between 0 and 255 or 0x00 , and 0xFF , and the float value can be between 0 and 1 .

The float value of the argb method , is the int value divided by 255 . So when it is 1 it means we have specified a color component which has an int value of 255 , and when it is 0 it is as if we have defined a color which has an int value of 0.

In this example we have the ColorActivity class that has an activity_color.xml file . In the ColorActivity we get the reference for two image views , ad we set the background color using the greenColor and greenColorHalfAlpha variable .The variables have a color int value which was created using the static Color class methods .

```package com.twiserandom.whatisacolor;

import android.graphics.Color;
import android.support.annotation.ColorInt;
import android.support.v4.content.ContextCompat;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;

public class ColorActivity extends AppCompatActivity {
ImageView srgbIv_GREEN , srgbIv_GREEN_HALF_ALPHA;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);
srgbIv_GREEN = (ImageView) findViewById(R.id.srgbIv_GREEN);
srgbIv_GREEN_HALF_ALPHA = (ImageView) findViewById(R.id.srgbIv_GREEN_HALF_ALPHA);
//create a green color using the rgb static method
@ColorInt int greenColor = Color.rgb(0,255,0);
//create a green color using the argb static method  specifying the alpha to be 127 or half transparent
@ColorInt int greenColorHalfAlpha = Color.argb(127,0,0,0);
/* set the background colors of the image views*/
srgbIv_GREEN.setBackgroundColor(greenColor);
srgbIv_GREEN_HALF_ALPHA.setBackgroundColor(ContextCompat.getColor(this, R.color.green_half_alpha));

}

}
```

activity_color.xml

```<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:id="@+id/srgbIv_GREEN"
/>

<ImageView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1"
android:id="@+id/srgbIv_GREEN_HALF_ALPHA"
/>
</LinearLayout>```

## Creating a 64 bits long rgb color in android

the color space that can be represented by using a 64 bits long literal in android are :

• rgb (srgb) : 8 bits per color (24 bits) , 8 bits for the alpha channel . (32 bits)
• rgb : 16 bits per color (48 bits), 10 bits for alpha , 6 bits for the color space . (64 bits)
• xyz : 16 bits per color (48 bits), 10 bits for alpha , 6 bits for the color space . (64 bits)
• xyz labs : 16 bits per color (48 bits) , 10 bits for alpha , 6 bits for the color space .(64 bits)

the most used color space is the rgb color , when it uses only 32 bits it is known as srgb . We can create it either by using 32 bits , or we can create it by using 64 bits , in this case the last 32 bits are set to zero .

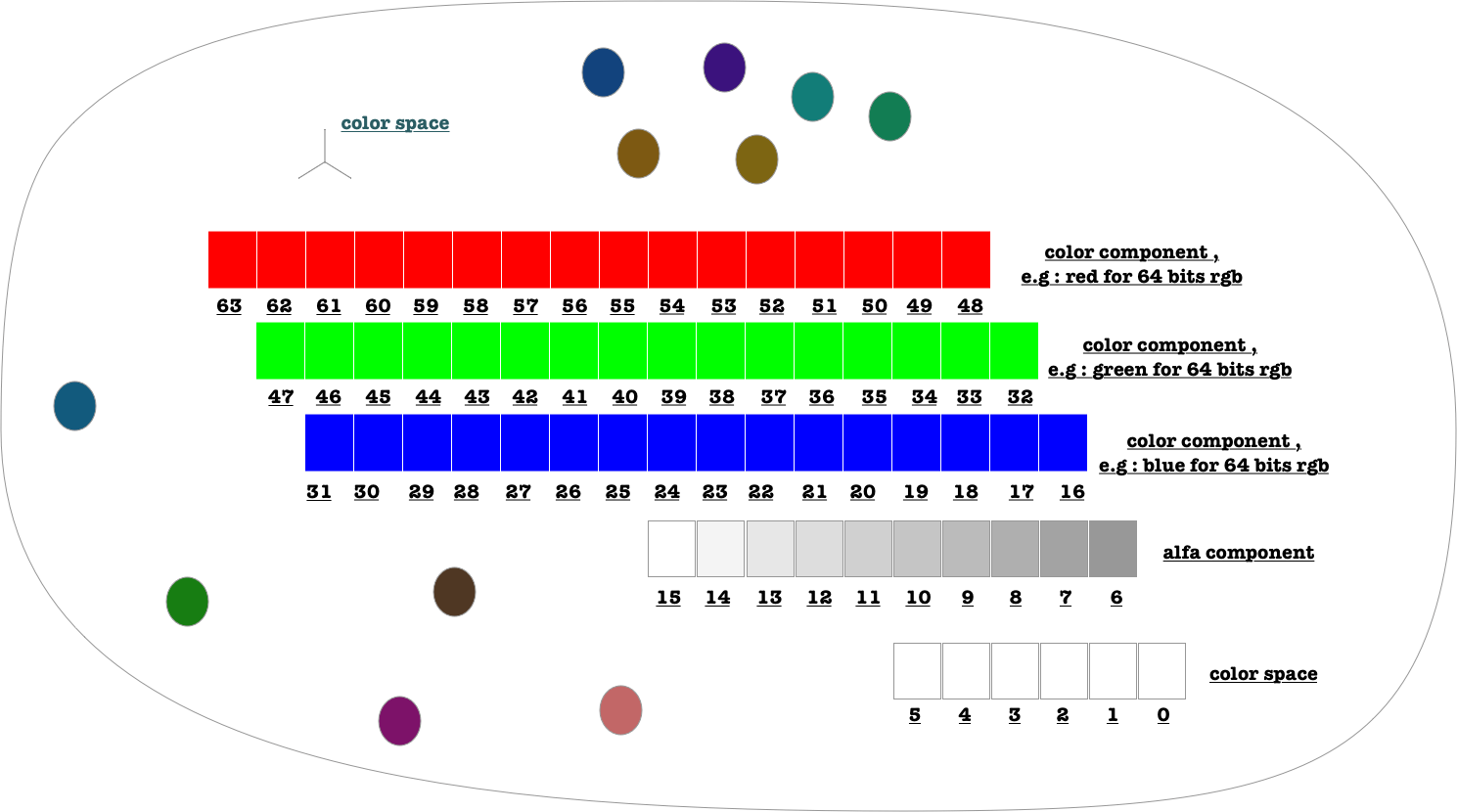

other colors can be created using the long color representation , in this case we must specify , the color components , the alfa component , and the other color space.

• the first 48 bits are used to specify the colors component.
• each 16 bits in the first 48 bits is used to specify the color component that belong to the color space that is specified
• the ten next bits are used to specify the alfa component
• the last 6 bits are used to specify the color space

since it is a little bit complex to create a 64 bit color by using a long literal , we can use the static methods of the Color class to create a 64 bits color .

### create a 64 bits long color using the Color class static methods

there are many methods in the `Color` class that allows us to create a 64 bits long color. A 64 bits color in android can only be create for api level 26 or higher , so for android O or version 8.

We cannot use a long color by views in android , so we must convert it to a color int before usage .

#### pack(int)->long

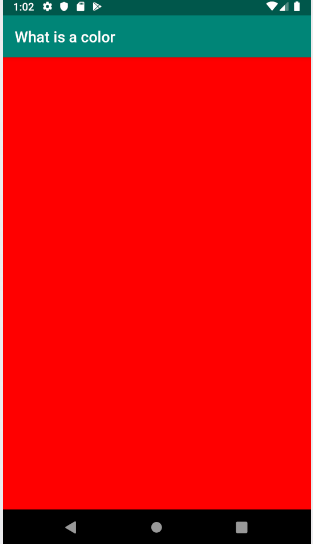

`public static long pack(@ColorInt int color)`

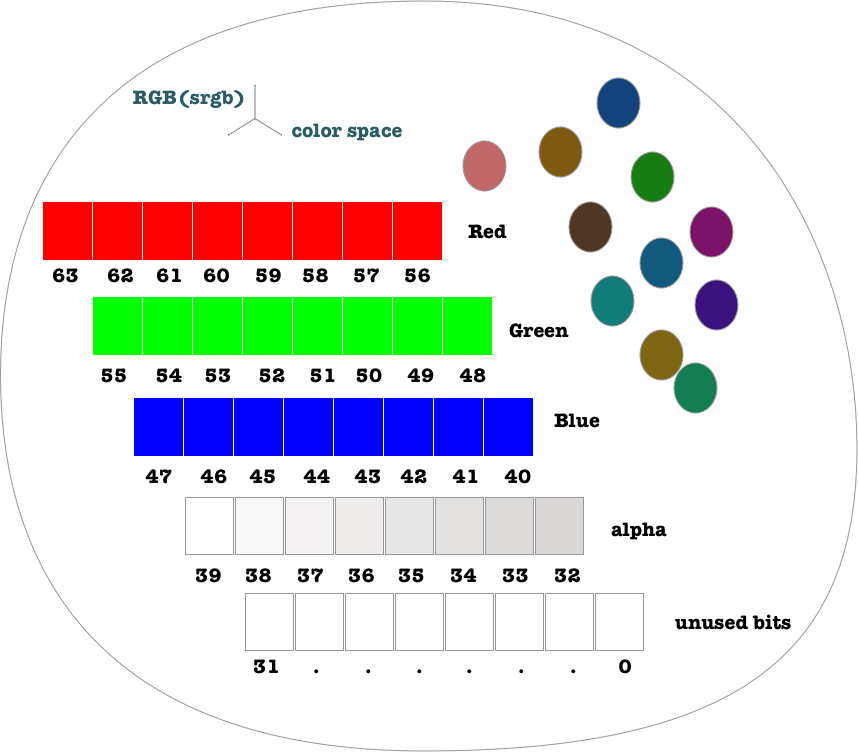

will create an srgb long color , the last 32 bits will be filled with 0 , and the first 32 bits will be the SRGB color .

```/*ColorActivity.java*/

package com.twiserandom.whatisacolor;

import android.graphics.Color;
import android.os.Build;
import android.support.annotation.ColorInt;
import android.support.annotation.ColorLong;
import android.support.annotation.RequiresApi;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;

public class ColorActivity extends AppCompatActivity {
ImageView ivColor;

@RequiresApi(api = Build.VERSION_CODES.O) /*Long Color can only be used for android version O or higher */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);

/*Get the reference for the color imageViews*/
ivColor = (ImageView) findViewById(R.id.ivColor);

/*create a long color */
@ColorLong Long aLongColor = Color.pack(0xFFFF0000);

/*Convert long color to int*/
/*Long color cannot be used with android view*/
@ColorInt int anIntColor = Color.toArgb(aLongColor);
ivColor.setBackgroundColor(anIntColor);

}

}

/*activity_color.xml*/

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:id="@+id/ivColor"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1" />

</LinearLayout>

```

in this example we have an image view . We get the reference to the image view . we create a 64 bit srgb color , and later convert it to a 32 bit rgb color in order for it to be used by the image view as its background color .

#### pack(float red , float green , float blue )->long

`public static long pack(float red, float green, float blue)`
• will create a 64 bit SRGB color from the red green and blue component.
• The red , green and blue components are specified as a float between 0 and 1 .
• The created color is srgb
• it uses the first 32 bits of the 64 bits long
• the last 32 bits are filled with zero.
• each color will have an 8 bits
• the alfa channel will have bits , which will be 0xFF by default .
```/*ColorActivity.java*/
import android.graphics.Color;
import android.os.Build;
import android.support.annotation.ColorInt;
import android.support.annotation.ColorLong;
import android.support.annotation.RequiresApi;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;

public class ColorActivity extends AppCompatActivity {
ImageView ivColor;

@RequiresApi(api = Build.VERSION_CODES.O) /*Long Color can only be used for android version O or higher */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);

/*Get the reference for the color imageViews*/
ivColor = (ImageView) findViewById(R.id.ivColor);

/*create a long color */
@ColorLong Long aLongColor = Color.pack(0,1,0);

/*Convert long color to int*/
/*Long color cannot be used with android view*/
@ColorInt int anIntColor = Color.toArgb(aLongColor);
ivColor.setBackgroundColor(anIntColor);

}

}

/*activity_color.xml*
/

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:id="@+id/ivColor"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1" />

</LinearLayout>
```

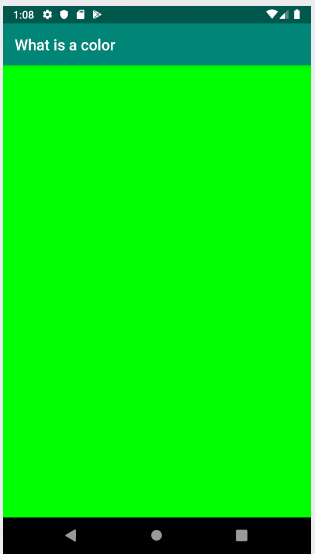

so in this example we have an imageView. We set its background color to green . We created the green color by using the pack methods which takes 3 values that represents red , green , blue. The alpha component has a default value of 1f .

An SRGB color uses only the first 32 bits , the last 32 bits of the long are set tozero . We can use the static method toArgb to convert a color from 64 bits to 32 bits .

#### pack(float red , float green, float blue , float alpha)->long

this method is similar to the pack(red, green , blue) method , but it takes an additional alpha component to create an SRGB color . It is used the same way as the pack(red,green,blue) method , we just have to specify an additional alpha component .

`public static long pack(float red, float green, float blue, float alpha)`

#### pack(float red, float green , float blue, float alpha , ColorSpace colorspace)->long

• we can use this method to create a color either using a srgb colorspace , or rgb color space .
• in Srgb color space each color takes 8 bits
• in rgb each color takes 16 bits .
• in the case of srgb
• red , green and blue are [0-255]/255
• alfa is [0-255]/255
• in the case of rgb
• red , green and blue are [0-65535]/65535
• alfa is [0-1023]/1023
• Color space is specified by using ColorSPace static properties
`public static long pack(float red, float green, float blue, float alpha, ColorSpace colorSpace)`

```/*ColorActivity.java*/
public class ColorActivity extends AppCompatActivity {
ImageView ivColor;

@RequiresApi(api = Build.VERSION_CODES.O) /*Long Color can only be used for android version O or higher */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);

/*Get the reference for the color imageViews*/
ivColor = (ImageView) findViewById(R.id.ivColor);

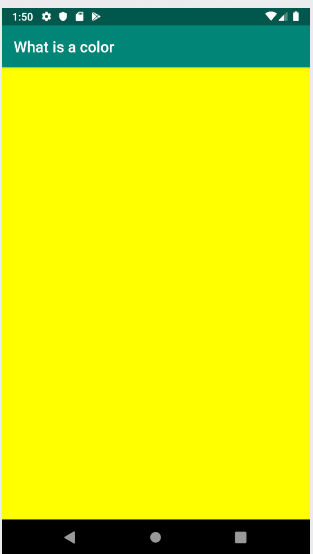

/*get srgb colorspace*/
ColorSpace srgb = ColorSpace.get(ColorSpace.Named.SRGB);

/*create a long color */
@ColorLong Long aLongColor = Color.pack(1,1,0 , 1 , srgb);

/*Convert long color to int*/
/*Long color cannot be used with android view*/
@ColorInt int anIntColor = Color.toArgb(aLongColor);
ivColor.setBackgroundColor(anIntColor);

}

}

/*activity_color.xml*/
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:id="@+id/ivColor"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1" />

</LinearLayout>
```

## Creating a Color instance

we can represent a color by using the instance of the Color class . To create an instance of the color class , we must use the valueOf method . The valueOf methods will create a Color instance that represents a 64 bit color .

The methods

```valueOf(float r, float g, float b)
valueOf(float r, float g, float b, float a)
valueOf(int)
```

will create an SRGB color represented by the Color instance . so each color component will take 8 bit . The methods

```valueOf(float r, float g, float b, float a , ColorSpace space)
valueOf(long)```

will create an rgb color where each color is represented by 16 bits , the alfa channel is 10 bits , and the color space is 6 bits .

```/*ColorActivity.java*/

package com.twiserandom.whatisacolor;

import android.graphics.Color;
import android.graphics.ColorSpace;
import android.os.Build;
import android.support.annotation.ColorInt;
import android.support.annotation.RequiresApi;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;

public class ColorActivity extends AppCompatActivity {
ImageView ivColor;

@RequiresApi(api = Build.VERSION_CODES.O) /*Long Color can only be used for android version O or higher */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_color);

/*Get the reference for the color imageViews*/
ivColor = (ImageView) findViewById(R.id.ivColor);

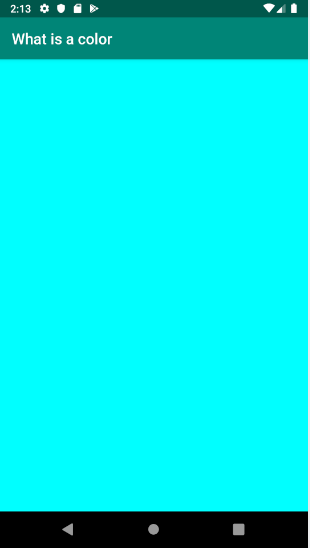

/*get rgb colorspace*/
ColorSpace srgb = ColorSpace.get(ColorSpace.Named.SRGB);

/*create a Color instance */
Color color = Color.valueOf(0, 1, 1, 1, srgb);

/*
get a 32 bit color from a color instance
*/
@ColorInt int anIntColor = color.toArgb();
ivColor.setBackgroundColor(anIntColor);

}

}

/*activity_color.xml*/
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<ImageView
android:id="@+id/ivColor"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1" />

</LinearLayout>

```
